80/120 MINI ADSS 2-12 core optic fiber cable ASU mini adss

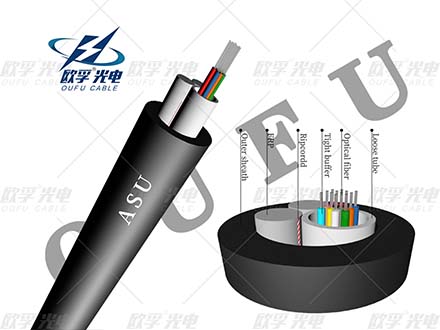

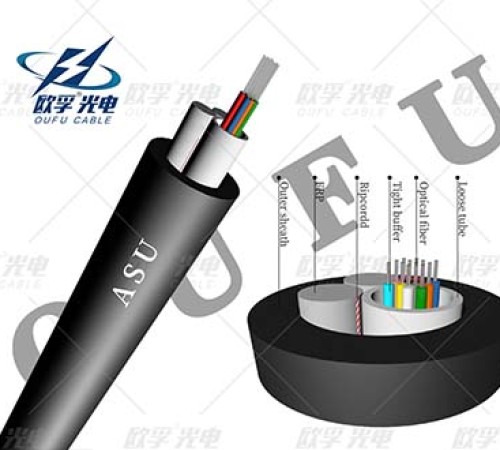

G.652D Aerial Self-Supported ASU Fiber Optic Cable has a loose tube structure and water-resistant gel compound to provide crucial protection for the fiber. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel fiber reinforced plastic(FRP) elements are placed on the two sides.The cable is covered with a single PE outer sheath. It is especially suitable for installation in aerial for long-distance communication.

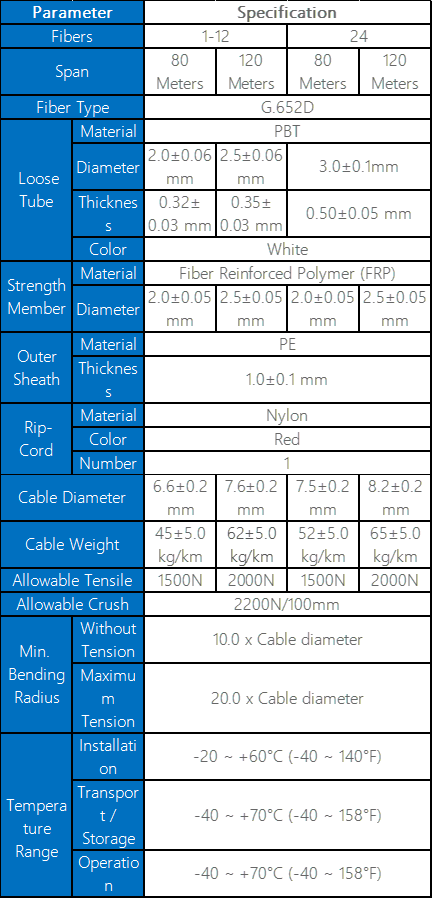

Operating :-40C to 70C
Storage:-50°C to 70C
Installation :-30C to 70
Bending Radius:
Static 10D
Dynamic 20D

Proven all-dielectric loose tube construction lmmune to electromagnetic fields Fast,

one-step installation Integrated FRP strength elementsRound cable profiles minimize wind and ice loading
FRP Filled element make cable hight tension
Tube filling gel
Loose tube stranded
PE sheath outdoor cable
Anti water yean protect cable from water

The 2~24 Fibers ASU CableAS80 and AS120) is a Self-Supported Optical Cable, lt was developed toprovide the connection between devices, being indicated for installation in urban and rural networksin spans of 80m or 120m. Because it is self-supported and totally dielectric, it has FRP strengthmember as a traction element, thus avoiding electrical discharges in the networks. lt is easy to handleand install, eliminating the need to use strings or grounding.
t is mainly used in the communication route of overhead high voltage transmission system, and canalso be used in the communication line under the environment such as lightning zone and longdistance overhead line.
ompared with the stranded ADSS Kabele di fibre optice, This Kabele di fibre optice can not only save the use ofimported aramid yarn, but also reduce the manufacturing cost due to the reduction of the overalstructure size. Compared with the common 150-meter span ADSS-24 Kabele di fibre optice , the price ofthe This cable of the same specification can be reduced by 20% or Pluive.

Q1：Esun produtôr?

A1: I. A son un produtôr cun 15 agns di cronologjie. O oferis il miôr priç diret de fabriche.

Q2：Puedis inviâ mi non (logo) su chescj produtûts?

A2: I! OEM profesionalis. La sô fabrike a puès fâ l'argo libar par l'ordin di plui gros.

Q3：Acetu piçul ordin?

A3:Y, piçui ordin a son sempre disponibii. A supuartadis gnovis progjet dai clients come no savi ancje granis origjinis di negocis di piçui ordin.

Q4：Puedis a furnî plui produtûts par ni jutori a salvâ plui costs?

A4: A... Cabele OPGW, ADSS cable, ACSR Cable, FTTH Drop cable, cabele di fibre outdoor, cabele fibre interni, Acessories di cabele di fibre, cord parche, pigtail e la cable di fibre dai l'aer a son i nostri produtûts principâls.
